Bosch Optical Level GOL 32 D + BT 160 +GR500 Professional

Technical Specifications

• Magnification: 32x

• Accuracy: ±1 mm at 30 m

• Working Range: Up to 120 m

• Protection Class: IP54 (dust and splash protection)

• Tripod Thread: 5/8"

• Temperature (Operating): -10 °C to 50 °C

• Temperature (Storage): -20 °C to 70 °C

• Weight: Approx. 1.5 kg (level only)

• Unit of Measure: 360 degrees

Key Features & Kit Contents

• Robust & Durable: Features a sturdy metal housing with IP54 protection, making it ideal for tough outdoor conditions on construction sites .

• Compensator Lock: Includes a locking mechanism for the pendulum compensator to prevent damage and ensure calibration is maintained during transport .

• Optical Performance: Equipped with a fast aperture and large focusing knob, providing a sharp, erect image of the target for easy staff reading .

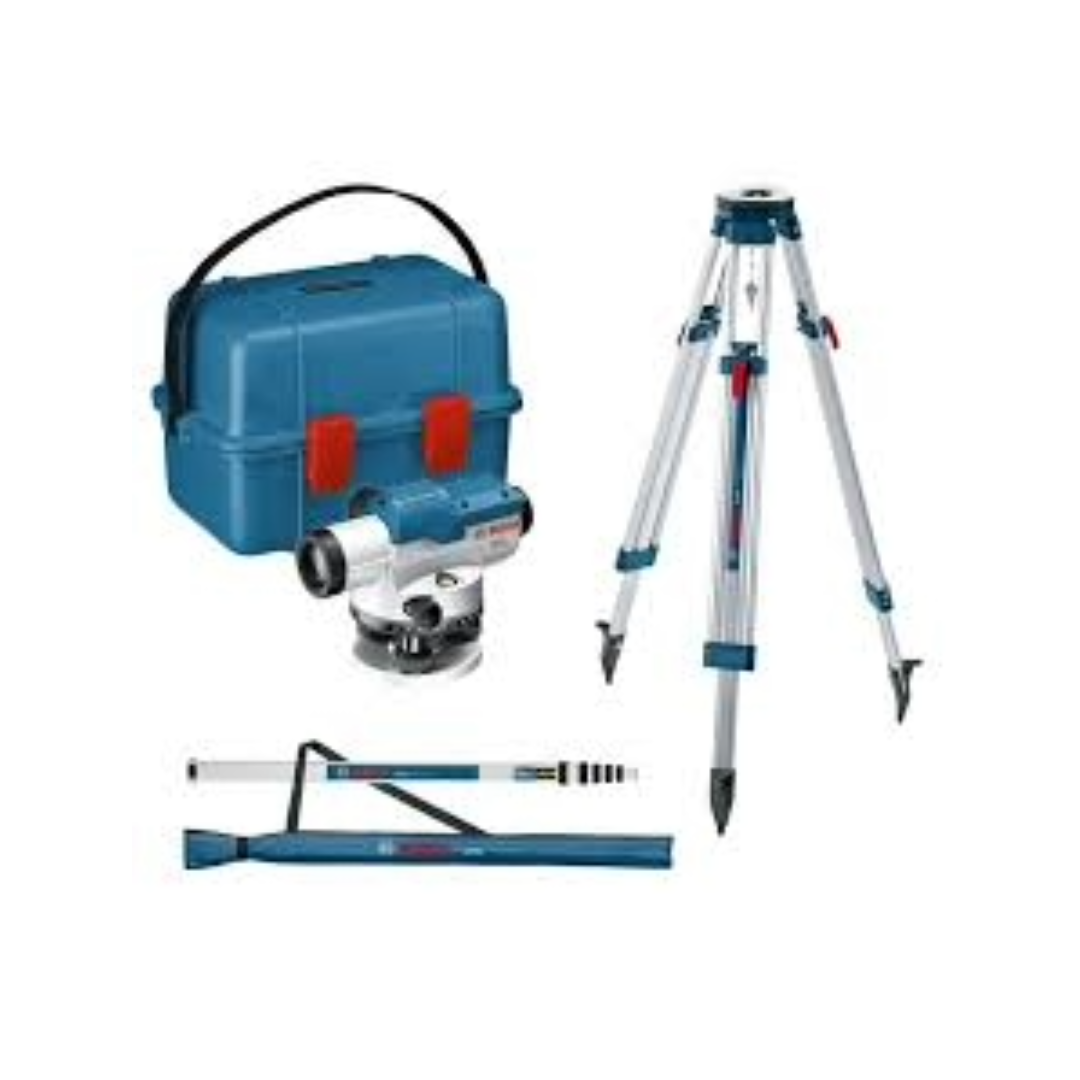

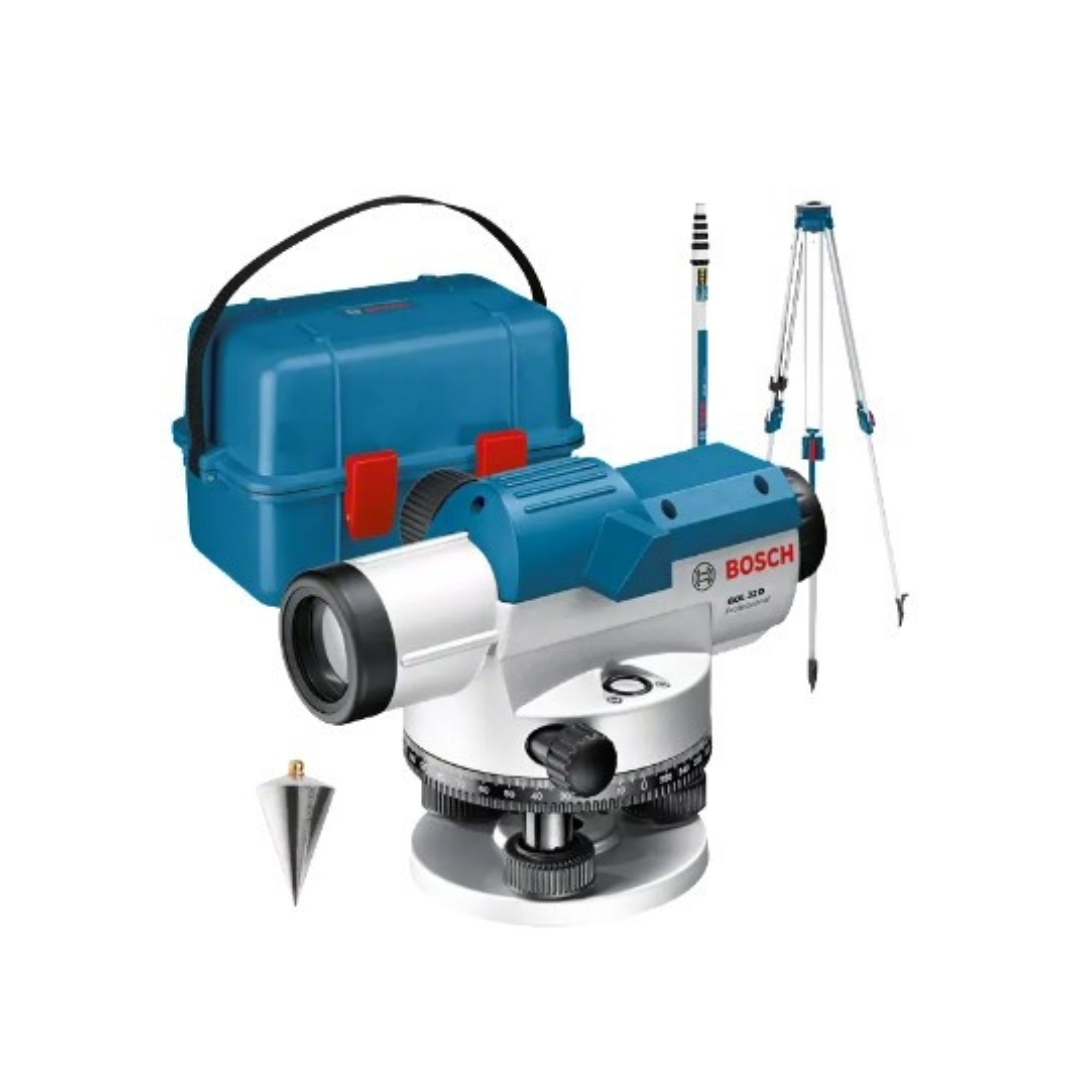

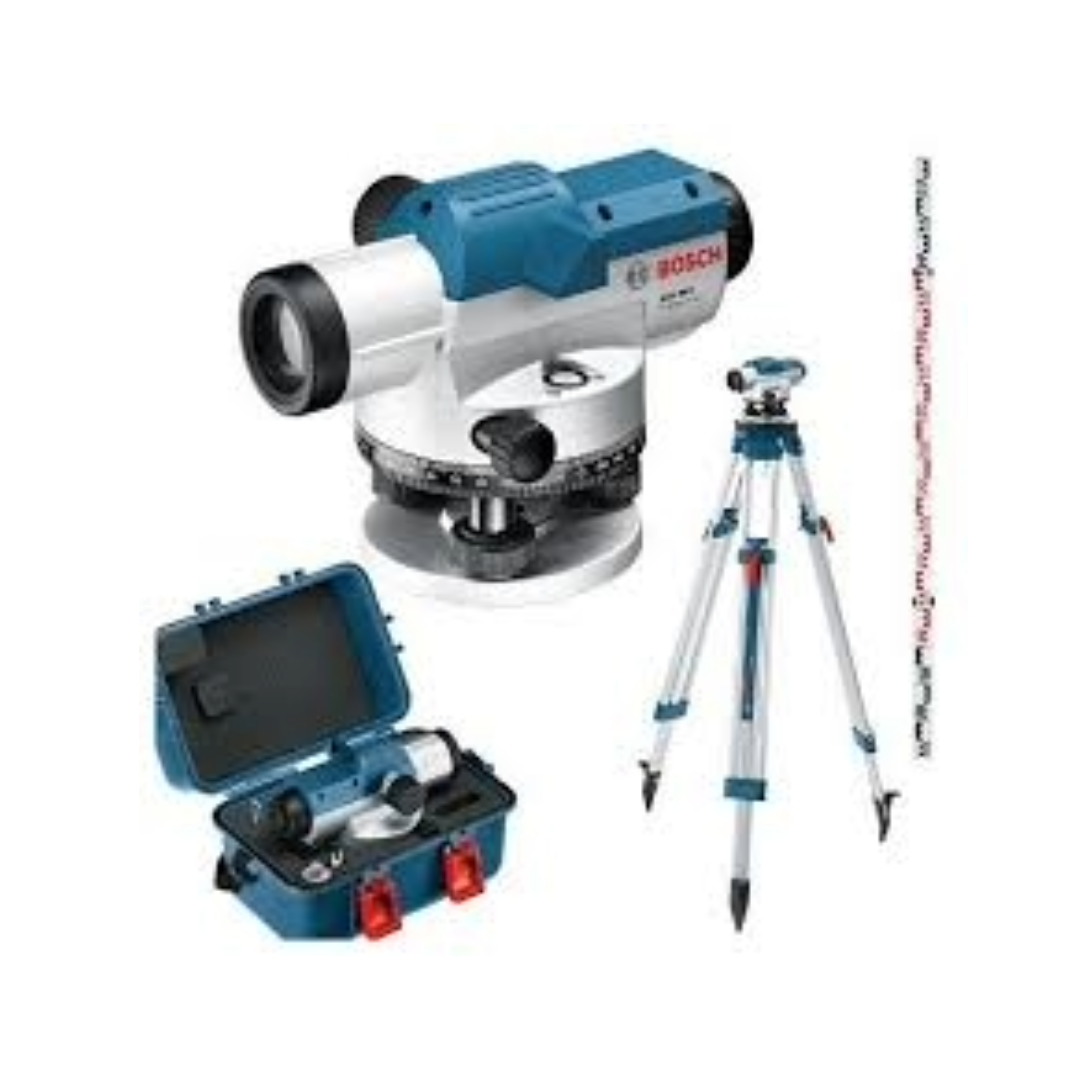

• Complete Kit (Set 0601068502): Supplied with the BT 160 Professional Building Tripod and the GR 500 Professional Measuring Rod, along with a plumb bob, carrying case, lens cover, and adjusting pin .

• Ease of Use: Designed with a target collimator for rough alignment and a penta prism for easy reading of the circular vial .



  Accessories Included:

  <>  Adjusting pin
  <>  Hex key
  <>  Building tripod BT 160 Professional (0 601 091 200)
  <>  Measuring rod GR 500 Professional (0 601 094 300)
  <>  Lens cover
  <>  Plumb bob
