Depth Micrometer - Mitutoyo Interchangeable Rod Depth Micrometer 0-25mm Series 128

Depth Micrometer - Mitutoyo Interchangeable Rod Depth Micrometer '0-25mm' Series 128

Lystus Technical is proud to be the authorized seller, supplier, and dealer of the Mitutoyo Interchangeable Rod Depth Micrometer Series 128. This precision tool is ideal for accurate depth measurements across a range of applications.

Key Elements

• Product Name: Mitutoyo Interchangeable Rod Depth Micrometer '0-25mm' Series 128
• Model Number: 947312
• Brand: Mitutoyo
• Authorized Seller: Lystus Technical

Description

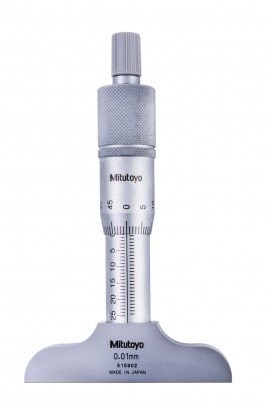

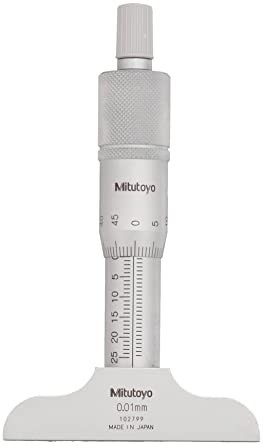

The Mitutoyo Interchangeable Rod Depth Micrometer Series 128 features a micrometer head with a range of 0-25mm, complemented by interchangeable rods that extend the measurement range up to 45mm. The markings "0-25mm" on the stem indicate the range of the main micrometer head, while "0-45mm" on the rotating handle shows the overall measurement capability with all rods attached.

Features

• Metric Depth Measurement: Precise depth measurement in metric units.
• Interchangeable Rods: Includes 5 rods for extending measurement range.
• High Accuracy: Ensures reliable and accurate measurements.

Specifications

• Micrometer Head Range: 0-25mm
• Total Measuring Range: 0-45mm (with rods)
• Incremental Rod Lengths: 5mm, 10mm, 15mm, 20mm, and 25mm
• Model Number: 947312

Measuring Range Details

• 0-25mm: Direct measurement using the micrometer head.
• 25-30mm: With the 5mm rod.
• 30-35mm: With the 10mm rod.
• 35-40mm: With the 15mm rod.
• 40-45mm: With the 20mm rod.

Application and Usage

The Mitutoyo Interchangeable Rod Depth Micrometer is suitable for a variety of industrial and laboratory applications where precise depth measurement is crucial. It is particularly useful in quality control, machining, and manufacturing processes.

Accessories

• Interchangeable Rods: 5 rods in 5mm increments (5mm, 10mm, 15mm, 20mm, 25mm)
• Storage Case: For secure storage and transport of the micrometer and rods.
• Calibration Certificate: Ensures accuracy and reliability.

Lystus Technical is committed to providing high-quality measurement tools. As an authorized dealer of Mitutoyo products, we ensure that you receive genuine and reliable tools for your precision measurement needs.

For more information or to place an order, please contact .Lystus Technical
