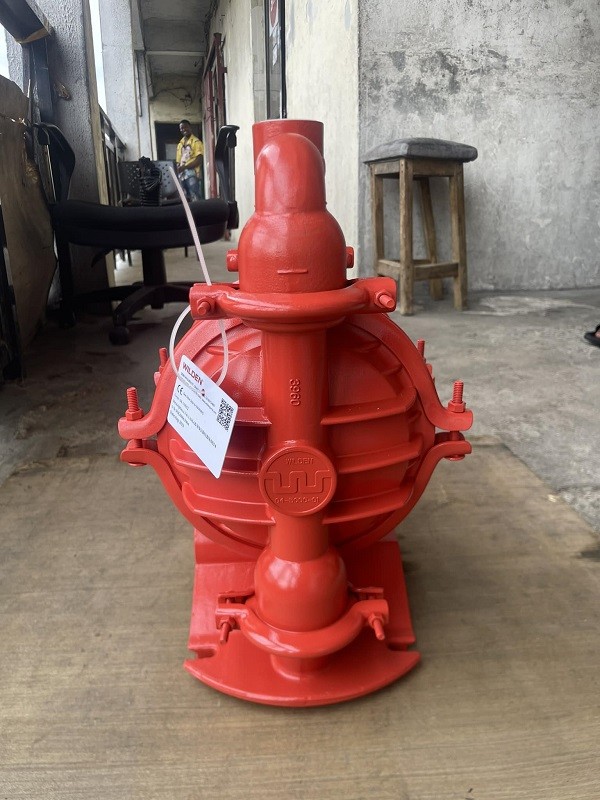

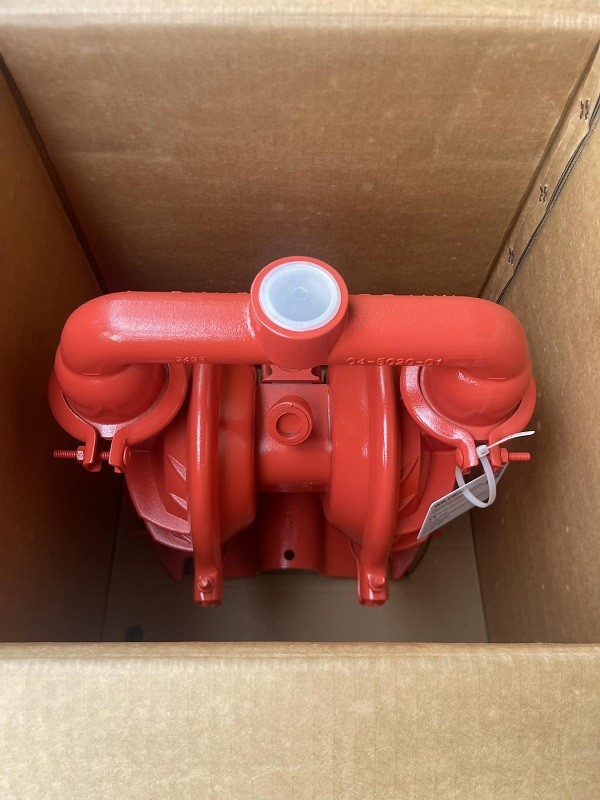

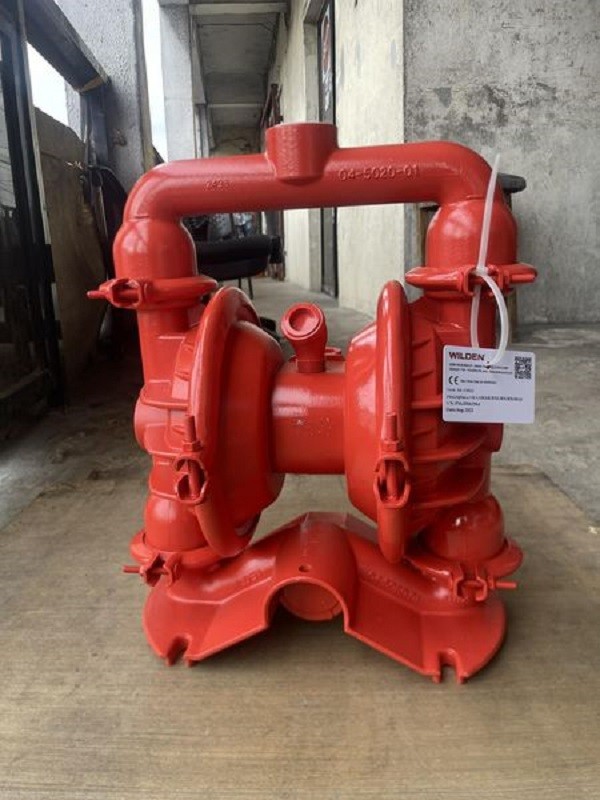

Wilden T4 38 mm (1 1/2'') Turbo-Flo Clamped Metal AODD Diaphragm Pump

The Wilden T4 38 mm (1 1/2'') Turbo-Flo Clamped Metal AODD Diaphragm Pump is a robust and efficient solution for industrial fluid transfer. Its advanced Turbo-Flo air distribution system eliminates mechanical failures, ensuring high reliability and minimal maintenance. This pump is well-suited for use in demanding environments such as chemical processing, wastewater treatment, and industrial manufacturing. With a lightweight clamped design and an impressive flow rate of 307 liters per minute (81 GPM), the Wilden T4 offers both power and ease of use.

Description

The Wilden T4 AODD Diaphragm Pump integrates a Turbo-Flo air distribution system, which operates without mechanical components such as trip rods, bearings, or springs. This design innovation reduces wear, simplifies maintenance, and enhances the overall durability of the pump. External parts are clamped securely to the center block, which houses advanced Glyd™ Ring seals to further reduce downtime. With its ability to handle contaminated air, the Wilden T4 ensures seamless operation in environments with compromised air quality.

Distributor, Supplier, and Importer: Lystus Technical
Website: lystus.com.ng, Altools.ng
Contact: 07063776040, 08055842884
Email: sales@Altools.ng, sales@lystus.ng

Key Features

• Simple Air Distribution System: Minimal moving parts for greater reliability and fewer breakdowns.
• Clamped Design: Lightweight and easily maintainable.
• Dirty Air Handling Capability: Operates efficiently in environments with poor air quality.
• Single Point Exhaust: Streamlined exhaust system for effective air expulsion.
• Turbo-Flo Technology: Increases efficiency by eliminating mechanical failures.
• High Flow Rate: Delivers a maximum flow rate of 307 liters per minute (81 GPM) for efficient fluid transfer.

Technical Specifications

• Model: T4 Original Metal
• Item Number: 04-1002, 04-9100-12
• Inlet/Outlet Size: 38 mm (1 1/2'')
• Maximum Flow Rate: 307 LPM (81 GPM)
• Maximum Air Pressure: 8.5 bar (125 psig), use air only
• Max Air Pressure Ratings:
  • H800 Max: 5.9 bar (85 psig)
  • P200/PTFE Max: 5.2 bar (75 psig)
  • UL Max: 3.4 bar (50 psig)
• Weight: Lightweight clamped design for portability
• Serial Number (S/N): PSG 00063964
• Manufacture Date: August 2023
• Dimensions:
  • Height: 500 mm (20 inches)
  • Length: 430 mm (43 cm)
  • Width: 400 mm (40 cm)

Safety Note

If the diaphragm material fails, the fluid being pumped may be discharged through the air exhaust. Always disconnect the air supply and relieve pressure from both the air and fluid sides of the pump before performing any maintenance.

Applications

The Wilden T4 Turbo-Flo Clamped Metal AODD Diaphragm Pump is ideal for industries that require durable and reliable fluid transfer systems. It is particularly suitable for:

• Chemical Processing
• Wastewater Treatment
• Industrial Manufacturing
• Paints and Coatings

Lystus Technical is the sole distributor, supplier, and importer of the Wilden T4 Turbo-Flo AODD Diaphragm Pump. For more details or inquiries, contact us at the provided phone numbers or email. Visit Lystus Technical or Altools Services for further information.
