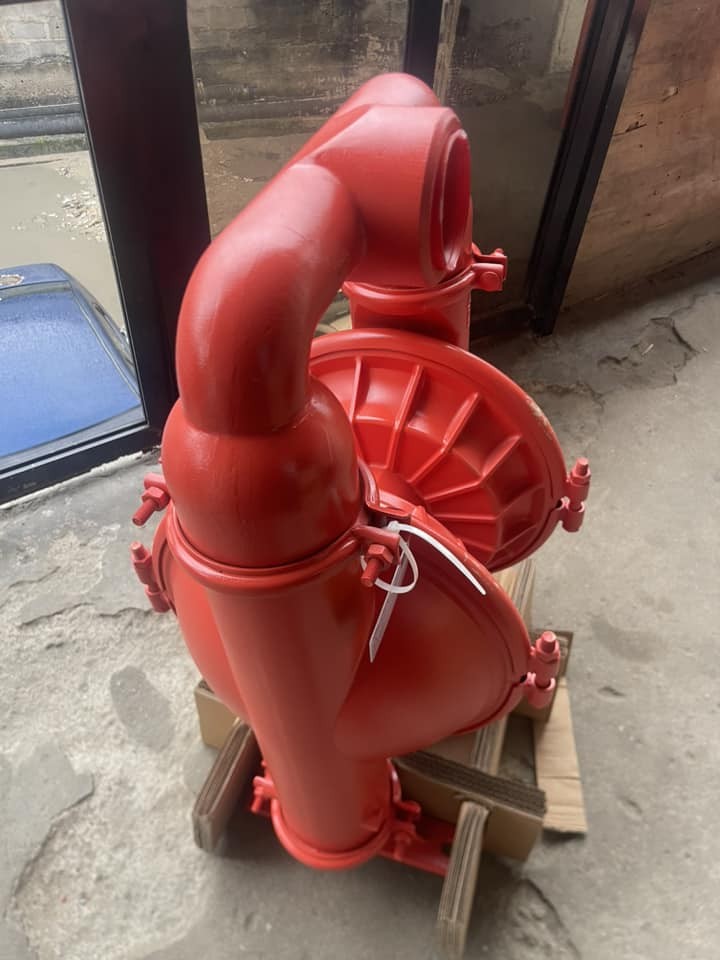

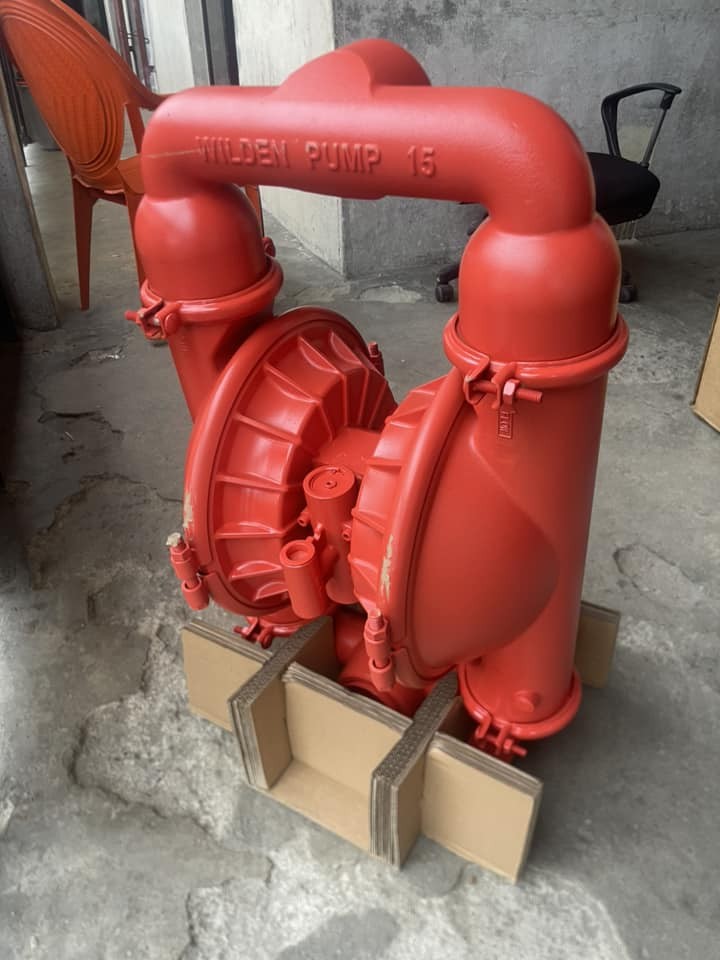

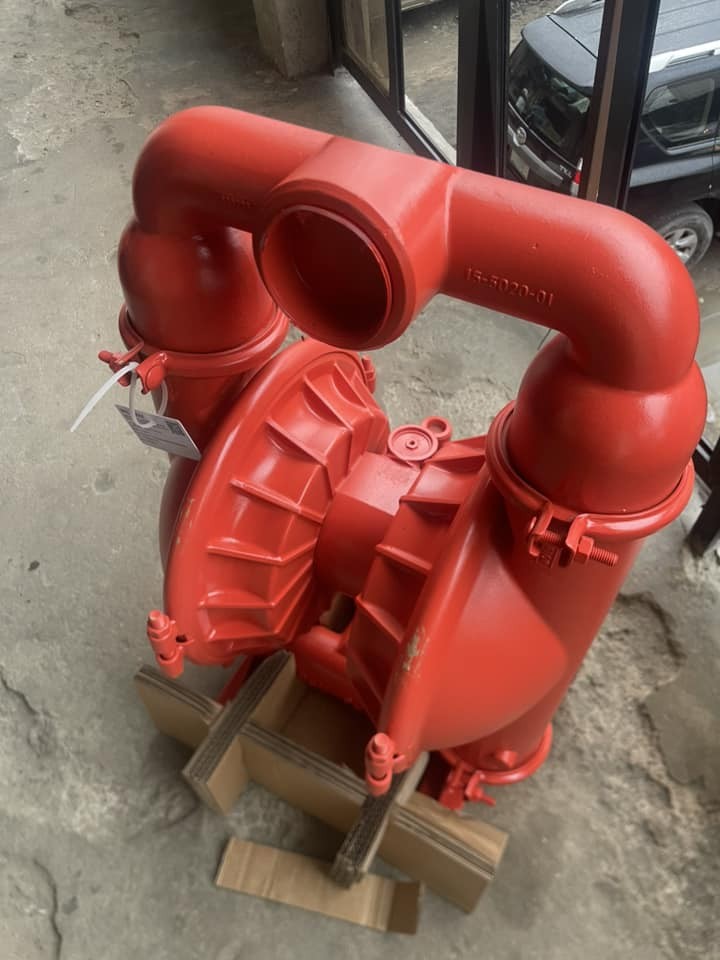

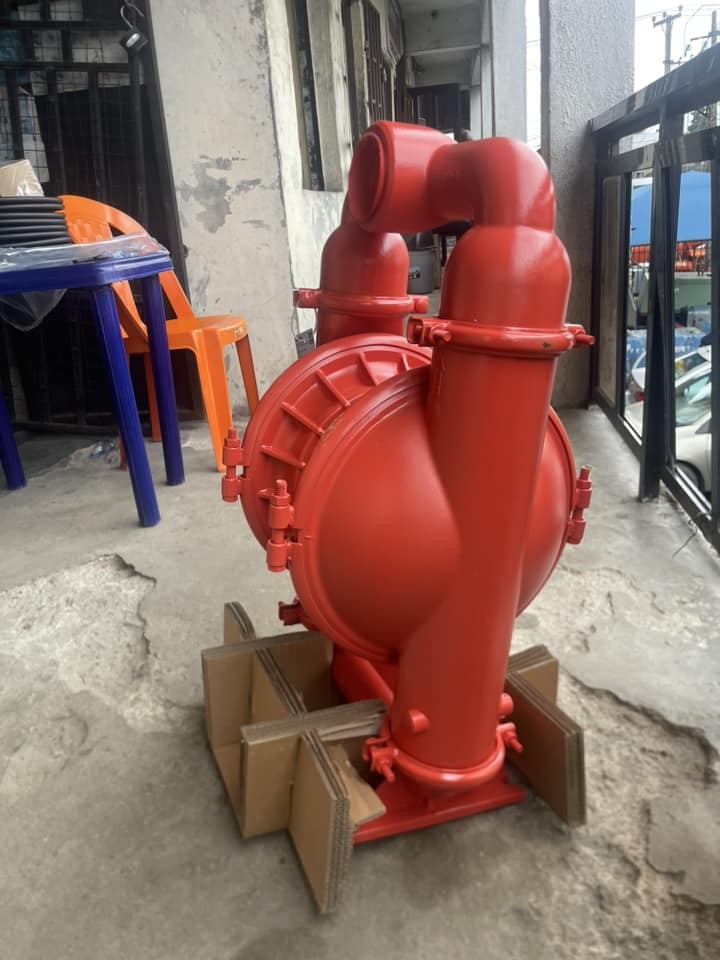

Wilden T15 Metal 76 mm (3") Diaphragm Pump

Wilden T15 Metal 76 mm (3") Diaphragm Pump - Available from Lystus Technical

The Wilden T15 Original™ 76 mm (3") diaphragm pump is a powerful air-operated, positive displacement pump designed for maximum efficiency and durability. With a flow rate of up to 878 liters per minute (232 gpm), this pump is perfect for handling a wide range of liquids and solids, making it a versatile solution across multiple industries.

Product Details:

• SKU: 15-9030-12
• Brand: Wilden
• Unit: Pc(s)
• Barcode Type: C128
• Available Locations: Altools Services
• Category: Industrial Pump
• Sub-category: Wilden Pump
• Manage Stock: Yes
• Reorder Quantity: 1.0000
• Expires In: Not Applicable
• Applicable Tax: None
• Selling Price Tax Type: Exclusive
• Product Type: Single

Key Features:

• Air-operated, self-priming diaphragm pump
• Maximum flow rate: 878 lpm (232 gpm)
• Maximum pressure: 8.5 bar (125 psig)
• Suction lift: 5.5 m dry, 9.45 m wet
• Capable of handling solids up to 10 mm (3/8")
• Sturdy cast iron construction, weighing 91 kg (200 lbs)

Technical Specifications:

• Height: 810 mm (31.9")
• Width: 432 mm (17.0")
• Depth: 279 mm (11.0")
• Gross weight: 91 kg (200 lbs)
• Air inlet: 19 mm (3/4")
• Inlet/Outlet: 76 mm (3")
• Suction lift: 5.5 m dry, 9.45 m wet
• Displacement per stroke: 5.3 liters (1.40 gal)
• Maximum size solids: 10 mm (3/8")
• Maximum flow rate: 878 lpm (232 gpm)
• Maximum pressure: 8.5 bar (125 psig)

Applications:
The Wilden T15 pump is ideal for transferring chemicals, slurries, and other industrial fluids in sectors such as oil & gas, chemical processing, mining, and wastewater treatment.

Authorized Distributor in Nigeria:
Lystus Technical is the official distributor of Wilden pumps in Nigeria. Contact us for more details or to place your order.

Safety Note:
Do not exceed 8.6 bar (125 psig) air supply pressure for safe operation.
